IMX487 Ultraviolet Camera Module GigE UV High Voltage Detection Hyper Spectral High Resolution Microscopy Cameras:

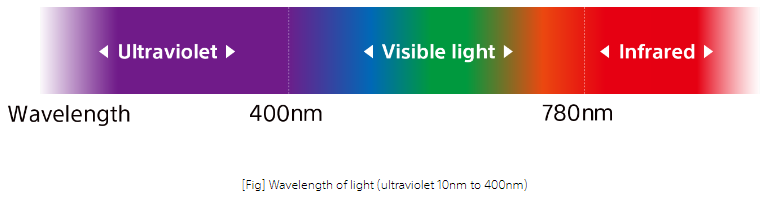

BSGD-UV810-GIGE-UV camera equipped with the high UV sensitivity 8.1 MP Sony Pregius UV IMX487-AAMJ-C global shutter CMOS sensor, is capable of capturing images across the ultraviolet light spectrum in the 200 to 400nm range.
High sensitivity and low dark current characteristics are achieved. Scientific grade UV compact camera for Material and Life sciences like: UV detection, hyper spectral imaging, wafer inspection, mask inspection, low light level imaging, combustion imaging, high resolution microscopy, spectroscopy, material testing, luminescence spectroscopy, high voltage technology etc.
| Specifications: | |
| Module number | BSGD-UV810-GIGE-V1.0 |
| Resolution | 8.1 MP 2856 X 2848 pixels |
| Frame rates | 14 Fps |
| Sensor model | SonyIMX487-AAMJ-C |
| Chroma | Ultraviolet |
| Sensor type | CMOS UV spectrum |
| Readout method | Global shutter |
| Sensor size | 2/3" |
| Sensor active area | 20 X 16.8 mm (Diagonal 11.1 mm) |

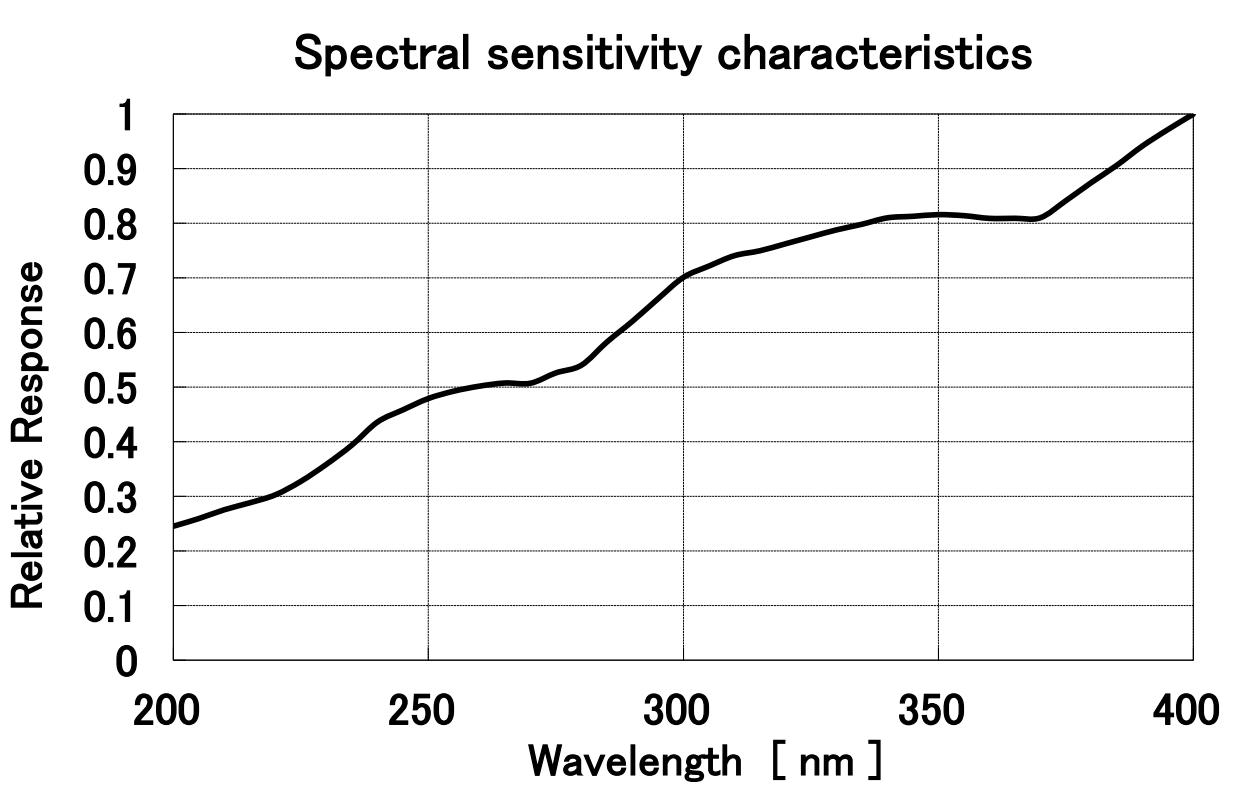

| Spectral range | 200 - 400 nm |
| Pixel size | 2.74 μm |
| Gain | 30 |
| Pixel format/max | mono8, mono12 / 12 bit |
| Binning | Support 1 × 1，1 ×2，2×2 |
| Digitization | 8, 10, 12 bit |
| Interface | GigE @ 1Gbps |
| I/O | 6-pin connector provides power supply and I/O，1 channel optocoupler isolation input，1 isolated output |
| Lens mount | C-mount/CS-mount |
| Support | IP30 |
| Weight | 66g |
| Camera size | 29mm×29mm×43mm |
| Power supply | 12V DC, ＜3.0W |
| Operating temperature | 0℃~50℃ |
| Humidity | 20% - 80% |
| Drivers | Support DirectShow, Twain, Halcon ,OCX... |
| Software | Compatible with Halcon、OpenCV、LabView、Matlab |
|
C/C++、VB6、VB.net、Delphi6 C# QT、C++BuilderLab、View、 Python |
|
| System Support | Windows、Linux、Android、MacOs |
| Standard | GigE Vision |
